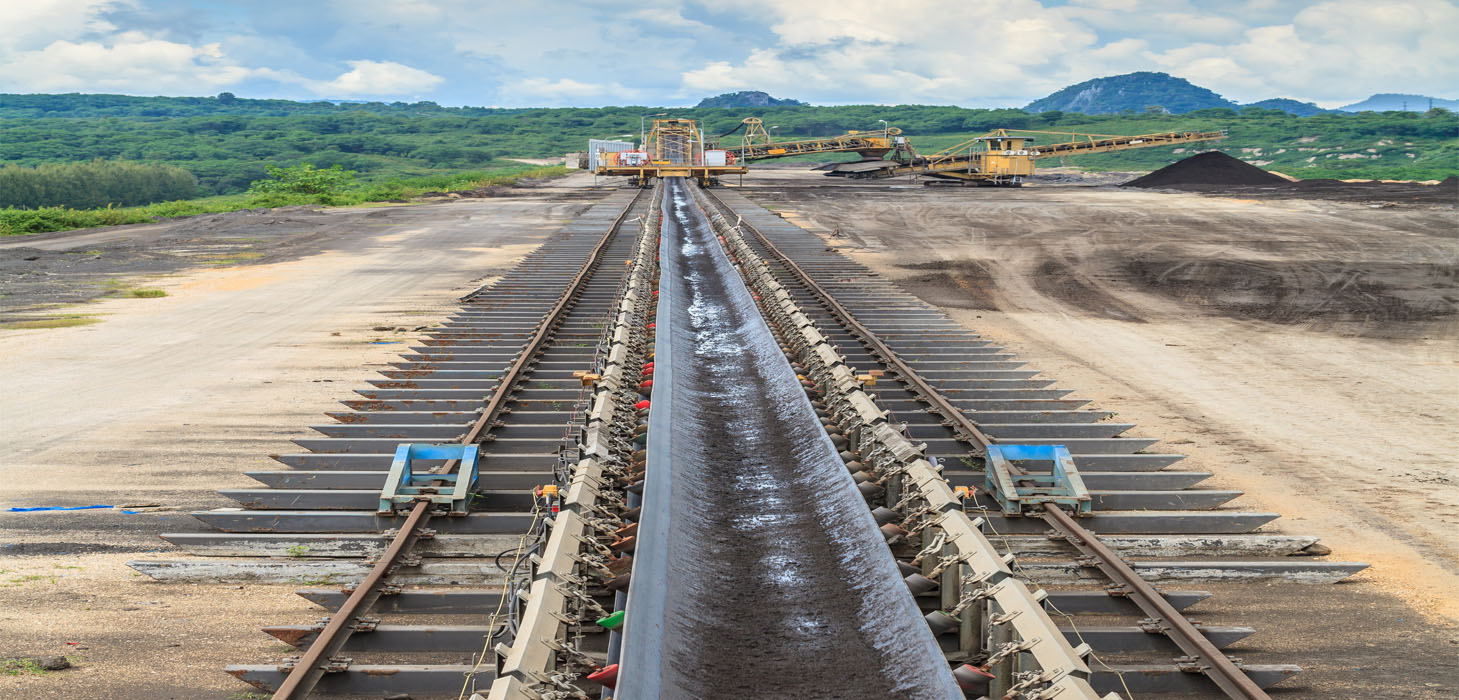

Rapid industrialisation has necessitated the use of conveyor Belts which have proved to be the most cost-effective system for transportation of raw material & finished goods in any form, for any application.
JONSON belting are manufactured in our most modern, fully automated plant, using the finest raw material inputs, under the strict vigil of qualified technical personnel. Our Belts have found satisfactory customers in the Domestic and the International export market with our clientele ranging Iron & Steel Plants, Coal, Copper, Gold Mines, Cement Plants, Thermal Plants, Fertilizers Plant and Ports to name a few. JONSON Conveyor Belts conform to all relevant Indian/International Standards and are manufactured in a wide range to suit all applications.
|Length||As per requirement|
|Ends||Open or Endless|
|Edges||Cut or Moulded / Protected|
|Fabric Plies||2 to 10 in Polyester/Nylon (EP) Nylon/Nylon (NH), Coton/Nylon (CN) or Cotton/Cotton (CC)|
|Carcass Construction||Straight Ply/Stepped Ply Reverse Stepped Ply.|
|Cover Thickness||As per Customer Specification|
|Cover Grades||M-24, N-17, HR, SHR, OR, Hygienic & FR.|
|Chevron Covers||Rough/Pimpled, V/C Cleats|
Common References : DIN – Z :
Very economical for moderately abrasive / small size material.
Common Reference : DIN - Y, N, RMA 2, BS - N 17, AS – N, JIS – G :
Recommended for moderate abrasion resistance applications, mostly above ground. Regularly used for transportation of Coal, crushed ores, limestone, bauxite, sand, cements etc…
Common Reference : DIN - X, M, RMA 1, BS – M24, AS – M, JIS – S :
Excellent abrasion resistance against cutting, gouging, heavy impact, during transportation of heavy rocks, sharp stones and highly abrasive materials.
Common Reference : DIN - W :
Recommended in extremely abrasive applications such as Copper & gold ore, sinter, coke. It provides high resistance without increasing cover thickness and weight of the belt. Oil Resistant (OR) & Moderately Oil Resistant (MOR) :
Specifically used for transportation of specific materials with high / moderate concentration of animal or vegetable fats. The special compound used in the covers, avoids damage / swelling of belt also during transportation of material with pine oil, wood oil, olive oil, petroleum etc….
|Characteristics||Min. Tensile Strength||Min. Elongation||Max. Abrasion Loss|
|General Light Duty Service||> 150||> 2130||> 400||< 250|
|Medium Abrasion Resistance||> 190||> 2700||> 450||< 200|
|High Abrasion Resistance||> 240||> 3410||> 500||< 120|
|Super Abrasion Resistance||> 180||> 2560||> 400||< 90|
|Strength Classes and No. of Plies|
|Strength Class (KN/m)||2-Ply||3-Ply||4-Ply||5-Ply||6-Ply|
